Hobbywing Platinum Pro ESC 260A OPTOV ( 6 – 14S ) 30203101

Description

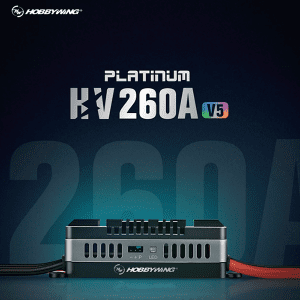

HW Platinum 260A HV V5 Brushless ESC (OPTO) (700-800 Heli)
Hobbywing Platinum 260A High Voltage V5 Brushless ESC (OPTO). Equipped synchronous rectifier drive efficiency optimization technology (DEO-Driving Efficiency Optimization) that makes the throttle response more linear and drives more efficiently! Four different flight modes, Fixed-wing mode, Helicopter external speed-setting mode, Helicopter elf-speed mode and Helicopter storage fixed-speed mode for an extremely convenient and enjoyable experience! while the helicopter speed-control function provides adjustable speed sensitivity and easy operation with more stable main rotor speed and excellent fixed speed, in the case of rapid load changes and the time selection function for stall landing that can be manually adjustable within the time set to avoid a crash due to handling errors!

In addition, the Platinum 260A HV V5 comes with an output interface to showcase the motor speed output in real time, a Flight data recording function that can record the minimum voltage, maximum temperature, maximum current and calibration speed (Requires OTA module – Sold Separately). When it comes to protection, Platinum 260A HV V5 is fitted with built-in multi-protection functions and anti-spark circuitry that effectively protect and prolong the lifespan of the ESC.

Features:

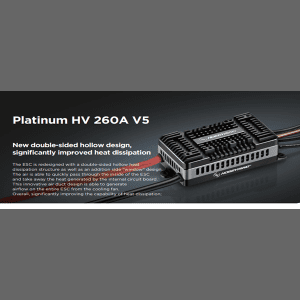

Double-sided cooling structure helps to further enhance the cooling efficiency on the ESC
Equipped with the synchronous rectifier drive efficiency optimization technology (DEO-Driving Efficiency Optimization) that makes the throttle response more linear, drives more efficiently and temperature efficient
Equipped with four flight modes, Fixed-wing mode, Helicopter external speed-setting mode, Helicopter elf-speed mode and Helicopter storage fixed-speed mode
Equipped with the helicopter speed-control function for adjustable speed sensitivity and easy operation with more stable main rotor speed and excellent fixed speed, in the case of rapid load changes
Equipped with the time selection function for stall landing that can be manually adjustable within the time set to avoid a crash due to handling errors
Equipped with LED indicators
Equipped with an output interface to showcase the motor speed output in real time
Equipped with a separate parameter setting interface which allows it to be connected to the LCD parameter set-up box or OTA module for parameter setting
Double-fan mounting holes for maximum heat dissipation
Flight data recording function that can record the minimum voltage, maximum temperature, maximum current and calibration speed (Requires OTA module – Sold Separately)
OTA Bluetooth module supported for quick changes to the parameter settings, software upgrading, data recording and other operations can be completed via the HW APP
Built-in multiple protections that effectively extend the lifespan of the ESC
Specifications:
Application: 700-800 Class Electric Helicopter
Continuous/Instantaneous current: 260A / 400A
Input voltage: 6-14S LiPo battery
BEC: None – OPTO
The input/output wire: 8AWG (input) / 10AWG (output)
Independent parameter programming: Connect LCD program box or OTA module, or to power the optional cooling fan
Dimensions (LxWxH): 89x50x34mm
Weight: 297g
Mounting holes: 3mm, 39x98mm
