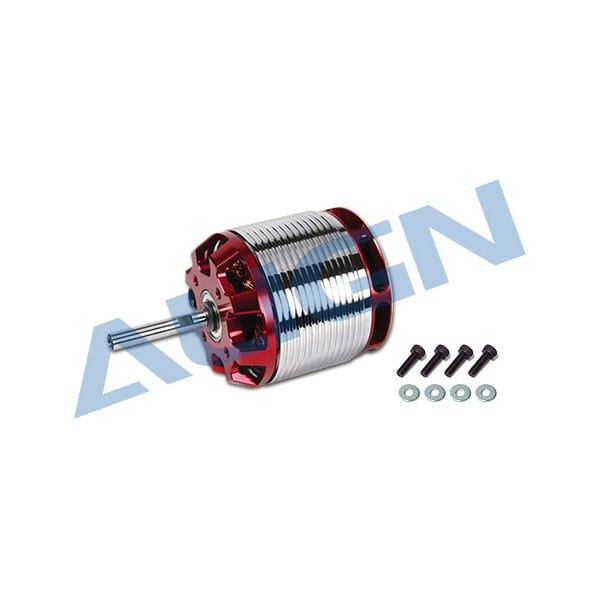

Align 700X/ 700E/800E 800MX Brushless Motor (520KV/4530) HML80M12

Name: Align 700X/ 700E/800E 800MX Brushless Motor (520KV/4530) HML80M12
SKU: HML80M12
Availability: InStock

$243.99

●To meet the power and torque requirements of enthusiasts, the high output 800MX motor was born in Align’s R&D lab. With dramatic increase in torque and power output, capable of 5100 watts continuous power output and 11000 watts of burst power!

In stock

SKU: HML80M12 Category: Align Motors Tags: (520KV/4530), 700E, 800E, 800MX, Brushless, HML80M12, Motor

Description
Additional information

Description

●800MX features high efficiency, superior power, excellent torque, low current draw and low temperature; it’s capable of maintaining consistent torque and head speed through continuous 3D maneuvers.
●Due to the 800MX’s high efficiency and low current draw, the standard equipment 120A electronic speed controller are sufficient to experience the power of this motor, and extend battery longevity.
●800MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
●The 800MX motor armature are dynamically balanced to eliminate typical imbalance found in other outrunner motors.
●Maintenance free、high torque、high efficiency、stable, and low noise.
●High-speed ball bearings, powerful magnetic outrunner rotor.
●Suitable for T-REX 700E 、T-REX800E helicopters.

800MX(520KV) motor is suitable for use with speed governor function on the speed controller. Start with setting the governor so that head speed is at around 2200RPM, and adjust according to individual needs. For safety reasons, please do not set too high of head speed.

Caution: When using the motor on T-REX 800E, please use 112T main gear with 12T motor pinion. Set the head speed at 1900RPM and collective pitch at ±12°

Lifetime Service

Effective immediately, the Align MX series motors have 40% off Lifetime service where your old motor can be exchanged for 40% off the retail pricing of a new equal spec motor. If needed, please contact to Align authorized distributors .

●Input Voltage: 12S
●Max Continuous Current: 115A/250A(2sec)
●Max Output Power: 5100W/11000W(2sec)
●KV Value: 520KV
●Stator Dimension:4530
●Stator Arms: 12
●Magnet Poles: 10

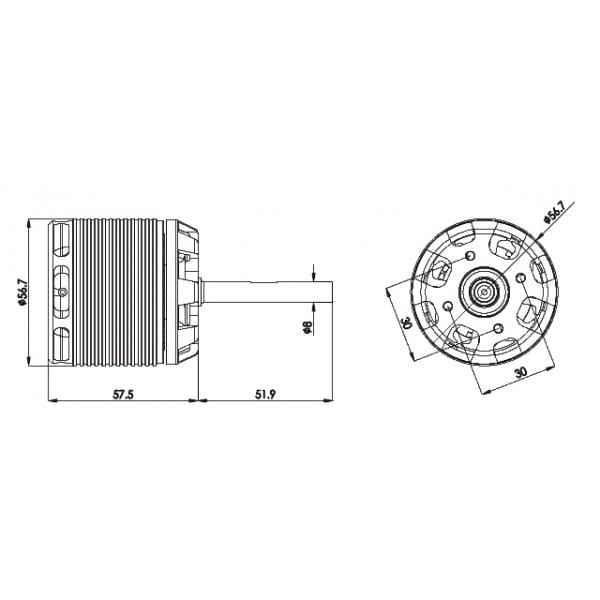

●Dimension: Spindle 6×56.7×94.5mm
●Weight: 508g

●Socket screw(M4X10)X4
●Washer(Φ4XΦ10X1)X4
●4mm gilt terminal x 3
