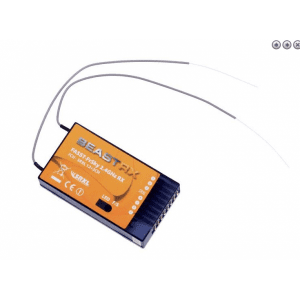

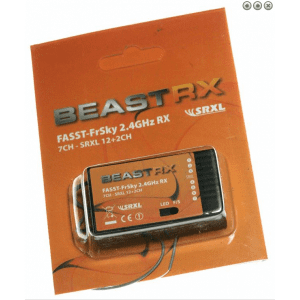

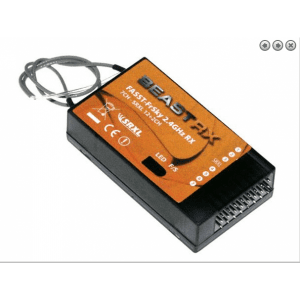

BEASTRX 2.4 GHz FASST SRXL V3 BXRX76100

Name: BEASTRX 2.4 GHz FASST SRXL V3 BXRX76100
SKU: BXRX76100
Availability: InStock

Original price was: $42.99.Current price is: $22.99.

BEASTRX – FASST compatible 2.4GHz 7/14-Channel Receiver with SRXL

In stock

SKU: BXRX76100 Category: Flybarless /Multi-Control and GPS Tags: 2.4, BEASTRX, BXRX76100, FASST, GHz, SRXL, V3

Description
Additional information

Description

BEASTRX – FASST compatible 2.4GHz 7/14-Channel Receiver with SRXL

This 14 channel SRXL-receiver is compatible with different 2.4 GHz systems, therefore observe the instructions regarding bind-procedure and failsafe-adjustment from the manufacturer manual of your 2.4GHz system as well as the BEASTRX manual.

Features

– Compatible with most of Futaba FASST 2.4 GHz systems
– SRXL data output, e.g. for usage in combination with MICROBEAST (with Firmware V3.0 or above)
– Improved capability of anti-interference

Compatibility
Futaba FASST 2.4GHz: 7-CH mode*
14-CH-MULTI mode
FrSky transmitter modules: TF-8M, TF-14M

*Not compatible with FASST transmitters, which are conform to EN300 328 (1.8.1).
Affected are the transmitters T14SG/FX22 with firmware 5.0 and above for example.

Specifications

Number of channels: 7 + SRXL data output (12+2 channels)
Operating voltage: 3.5V ~ 10V
Dimension: 54x30x14mm
Weight: 13.5g
Latency: 14ms / ~70Hz (FS mode) // 7ms / ~140Hz (HS mode)

Important note:
Due to different failsafe settings between transmitter and BEASTRX, users must disable failsafe on the transmitter side. Otherwise you will notice a jitter during a period of time on the channels you set failsafe.
